1000W Fixed Aluminum Shell Braking Resistor Resistance
Product Overview
High-performance wirewound resistors designed for industrial braking applications and power dissipation.
RX20 Wirewound Resistor
Coated with painted wire-wound resistors for insulation and high temperature resistance, featuring high power capacity, strong overload resistance, and high voltage withstand capability.
- Rated power: 10W~6KW
- Working voltage: <1.2kV
- Rated resistance: 0.1Ω~10KΩ
- Maximum withstand voltage: 3000V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift: ≤400ppm/°C
- Working temperature: -55°C~+275°C
- Application fields: simulated load, discharge equipment, industrial/automation industry
RXHG Corrugated Wirewound Resistor
Features vertical corrugation resistance wire for enhanced heat dissipation and reduced parasitic inductance, with insulation coating for high temperature applications.
- Rated power range: 10W~6000W
- Working voltage range: <1.2kV
- Rated resistance range: 0.1Ω~25KΩ
- Maximum withstand voltage: 3000V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Working temperature range: -55°C~+275°C
- Application fields: simulated load experiment, equipment discharge, automatic control, inverter energy consumption braking

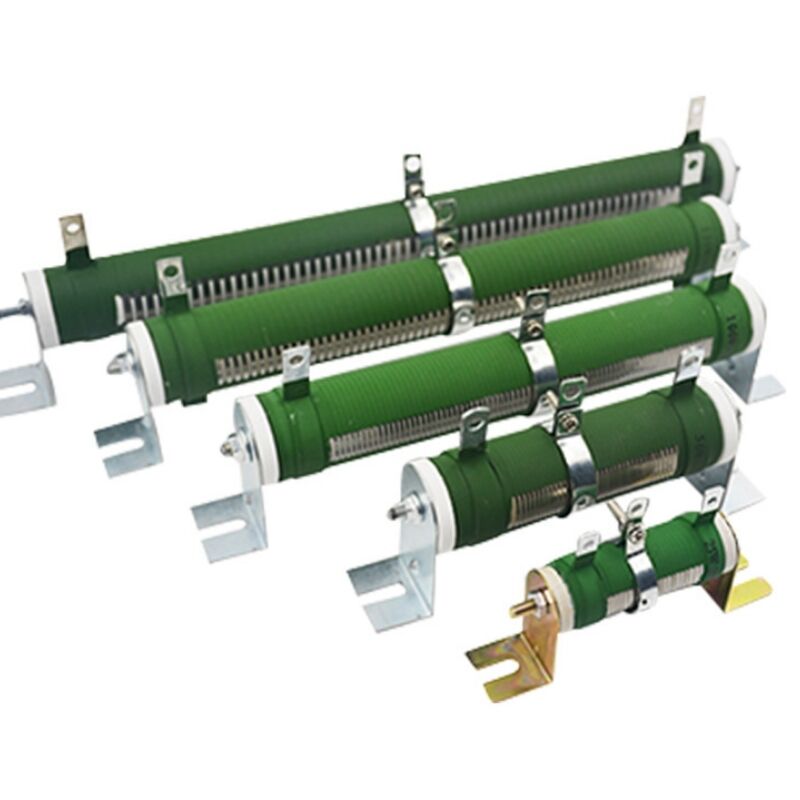

RX20-T Adjustable Resistor
Flat-wound resistance wire design for optimal heat dissipation and minimal parasitic inductance, with insulating high temperature resistant coating.
- Rated power: 50W~6000W
- Working voltage: <1.2kV
- Rated resistance: 1Ω~5KΩ
- Maximum withstand voltage: 3000V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Working temperature range: -55°C~+275°C
- Application fields: simulated load experiment, equipment discharge, automatic control, inverter energy consumption braking
RXG20 Glazed Resistor
Features moisture resistance, high insulation, strong overload capacity, excellent thermal stability and long service life.
- Rated power range: 8W~500W
- Operating voltage range: <1.5kV
- Rated resistance range: 0.1Ω~90KΩ
- Maximum withstand voltage: 3500V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Operating temperature range: -55°C~+375°C
- Application fields: large power supply, power equipment, electrical equipment, locomotives
RXG20-T Glazed Resistor
Adjustable glazed wirewound resistor offering moisture resistance, high insulation, strong overload capacity, thermal stability and extended service life.
- Rated power range: 8W~500W
- Working voltage range: <1.5kV
- Rated resistance range: 0.1Ω~90KΩ
- Maximum withstand voltage: 3500V
- Maximum accuracy: 1%
- IP rating: IP00
- Vibration: 0.5g
- Temperature drift range: ≤400ppm/°C
- Working temperature range: -55°C~+375°C
- Application fields: large power supply, power equipment, electrical equipment, locomotive
Technical Specifications
| Rated power (W) |
D±2 |
L1±2 |
L2±5 |
L3±3 |
N±1 |
Φ±1 |
Reference weight (KG) |
Resistance accuracy |
Temperature Coefficient |
| 10W | 14 | 40 | / | / | 5 | 3 | 0.02 | ±5% | ±250PPm |
| 15W | 14 | 45 | / | / | 5 | 3 | 0.02 | | |
| 20W | 16 | 50 | 85 | 100 | 6 | 3 | 0.05 | | |
| 25W | 20 | 50 | 85 | 100 | 6 | 3 | 0.05 | | |
| 30W | 20 | 70 | 105 | 120 | 6 | 3 | 0.06 | | |
| 40W | 20 | 90 | 125 | 140 | 6 | 3 | 0.08 | | |
| 50W | 28 | 90 | 130 | 150 | 9 | 4 | 0.1 | | |
| 75W | 28 | 140 | 180 | 200 | 9 | 4 | 0.15 | | |
| 100W | 28 | 170 | 210 | 230 | 9 | 4 | 0.18 | | |
| 150W | 28 | 215 | 250 | 270 | 9 | 4 | 0.22 | | |
| 200W | 28 | 267 | 300 | 320 | 9 | 4 | 0.23 | | |
| 250W | 28 | 267 | 300 | 320 | 9 | 4 | 0.32 | | |
| 300W | 40 | 267 | 287 | 307 | 12 | 6 | 0.32 | | |
| 400W | 40 | 300 | 320 | 240 | 12 | 6 | 0.36 | | |
| 500W | 50 | 300 | 320 | 340 | 14 | 6 | 0.55 | | |
| 600W | 50 | 300 | 320 | 340 | 14 | 6 | 0.95 | | |
| 800W | 60 | 300 | 330 | 335 | 16 | 6 | 1 | | |
| 1000W | 70 | 300 | 330 | 335 | 16 | 6 | 1.2 | | |
| 1200W | 70 | 360 | 390 | 415 | 16 | 6 | 1.6 | | |
| 1500W | 70 | 420 | 450 | 470 | 16 | 6 | 2 | | |
| 2000W | 60 | 510 | 540 | 560 | 16 | 6 | 2.3 | | |
| 2500W | 70 | 510 | 540 | 560 | 16 | 6 | 2.7 | | |
| 3000W | 80 | 430 | 470 | 500 | 16 | 6 | 3 | | |
| 4000W | 100 | 400 | 440 | 465 | 16 | 7 | 3.5 | | |
| 5000W | 100 | 500 | 540 | 560 | 16 | 7 | 4.5 | | |
| 6000W | 100 | 600 | 640 | 660 | 16 | 7 | 5.8 | | |
| 8000W | 150 | 600 | 690 | 740 | 25 | 15 | 18 | | |
| 9000W | 150 | 600 | 690 | 740 | 25 | 15 | 18 | | |
| 10KW | 150 | 600 | 690 | 740 | 25 | 15 | 18 | | |
Packaging & Delivery
Professional, environmentally friendly, convenient and efficient packaging services ensure the safety of your goods during transit.
Company Profile
Sichuan Qixing Electronics Co., Ltd is a specialized high-tech enterprise manufacturing trimming potentiometers, wire-wound potentiometer series, wire-wound resistor series, and RIG high power resistors.
Our "BONENS" brand products are widely applied in instruments, meters, post and telecommunications, electricity power, railway signals, aviation and aerospace.
We hold ISO9001 certification and comply with TUV and RoHS environmental standards. Our commitment to excellent product quality, advanced facilities, abundant technology, strict management and good service has earned high praise and trust from customers worldwide.
Frequently Asked Questions
1. Are you a factory or trading company?
We are a factory, ensuring first-hand pricing. All products feature high performance and competitive pricing.
2. How can we guarantee quality?
We conduct pre-production sampling before mass production and perform final inspection before shipment.
3. What can you buy from us?
Potentiometer, Resistor, EMI Filter, Knob, Switch
4. Why should you buy from us not from other suppliers?
Established in 2005, we specialize in developing and manufacturing various types of potentiometers, AC/DC noise filters, and ceramic power resistors, ensuring high quality, best services and competitive pricing.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash
Language Spoken: English, Chinese
