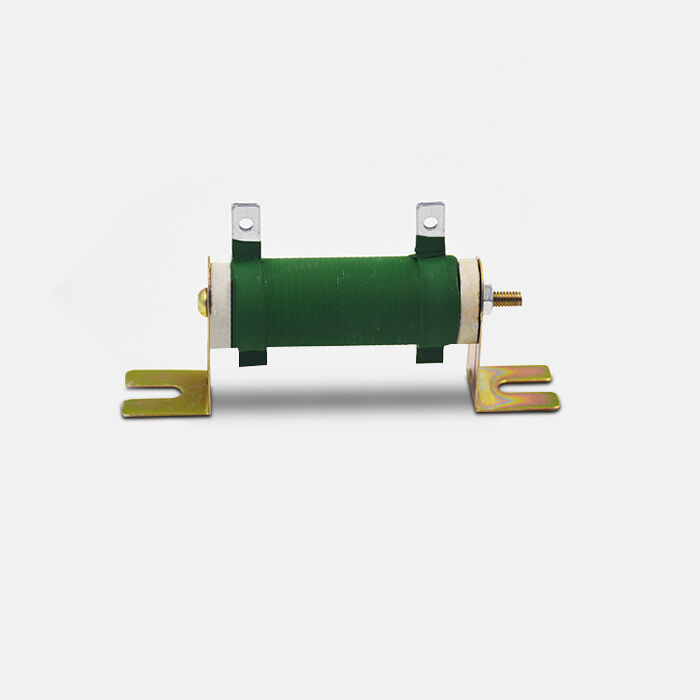

2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
  • 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition

2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition

Место происхождения Сычуань, Китай
Фирменное наименование bonens
Номер модели Керамический 2000 Вт 8 Ом
Детали продукта
Сопротивление:
1Ω-10KΩ
Устойчивость к сопротивлению:
± 5%
Тип:
Постоянное сопротивление
технология:
Состав керамики
Тип упаковки:
Через дыру
Номинальная мощность:
2000 ватт
Температурный коэффициент:
± 250 млрд
Размеры D:
60±2 мм
Размеры L1:
510±2 мм
Размеры L2:
540±5 мм
Размеры L3:
560±3 мм
Размеры Н:
16±1 мм
Размеры Φ:
6±1 мм
Справочный вес:
2,3 кг
Точность сопротивления:
± 5%
Выделить:

2000W Wirewound Resistor

,

8 Ohm Ceramic Resistor

,

Ceramic Composition High Power Resistor

Условия оплаты & доставки
Количество мин заказа
1
Характер продукции
High Power 8 Ohm Ceramic Resistor 2000W
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 0
Product Features
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 1 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 2 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 3 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 4 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 5 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 6
Product Specifications & Dimensions
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 7
Rated Power (W) D±2 (mm) L1±2 (mm) L2±5 (mm) L3±3 (mm) N±1 (mm) Φ±1 (mm) Reference Weight (kg) Resistance Accuracy Temperature Coefficient
10W1440//530.02±5%±250ppm
15W1445//530.02
20W165085100630.05
25W205085100630.05
30W2070105120630.06
40W2090125140630.08
50W2890130150940.1
75W28140180200940.15
100W28170210230940.18
150W28215250270940.22
200W28267300320940.23
250W28267300320940.32
300W402672873071260.32
400W403003202401260.36
500W503003203401460.55
600W503003203401460.95
800W603003303351661
1000W703003303351661.2
1200W703603904151661.6
1500W704204504701662
2000W605105405601662.3
2500W705105405601662.7
3000W804304705001663
4000W1004004404651673.5
5000W1005005405601674.5
6000W1006006406601675.8
8000W150600690740251518
9000W150600690740251518
10KW150600690740251518
RX20/RXG20 Load Resistor & Braking Resistor
High-power corrugated wire-wound resistor suitable for braking, load, inverter discharge, and aging load applications. Available resistance values from 0.1Ω to 10kΩ.
Product Gallery
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 8
Product Packaging
2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition 9
Key Features
  • Resistance surface is painted with wide power range capability
  • Excellent high temperature load performance
  • Full welded structure for enhanced durability
  • High reliability and long service life
